Storage Cable Reels for Any Cable, Any Connector
Cost-effective reels supplied without a slip ring (rotary joint), letting you install most any small to mid diameter cable regardless of connector type. Deploy the cable, then connect. A drum-mounted revolving handle and variable friction brake give you easy control on payout and recovery.
5 Business Days
Ships from receipt of order, at current inventory
19 mm
Max cable diameter (0.75 in)
19 to 33 lbs
Nominal weight without cable
Upgradable
To a 20 Series rotary joint reel
Choose Your 10 Series Reel
Capacities include an 80% real-world winding factor.

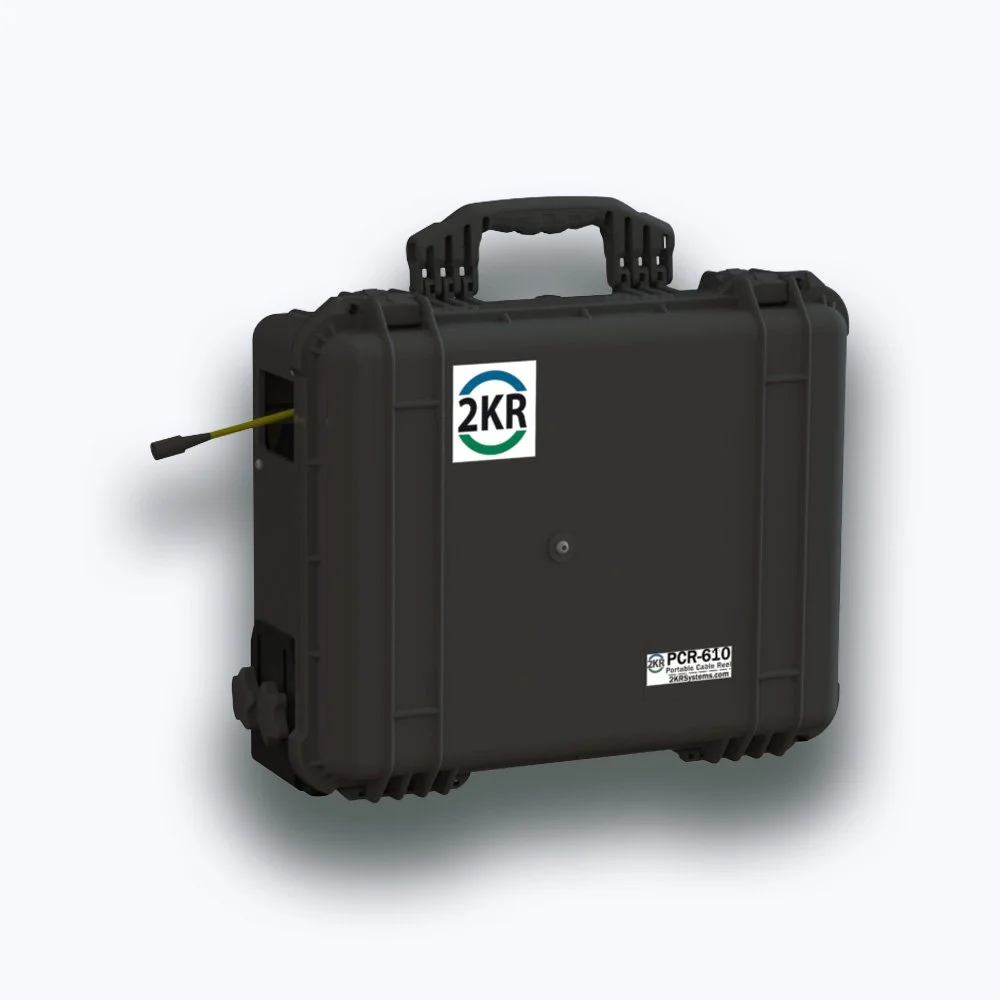

PCR-610
$939.00P/N 110398 · Small
The smallest and lightest cable reel for storage.
PCR-1210
$1,079.00P/N 110337 · Medium
Our mid-size reel for storage.

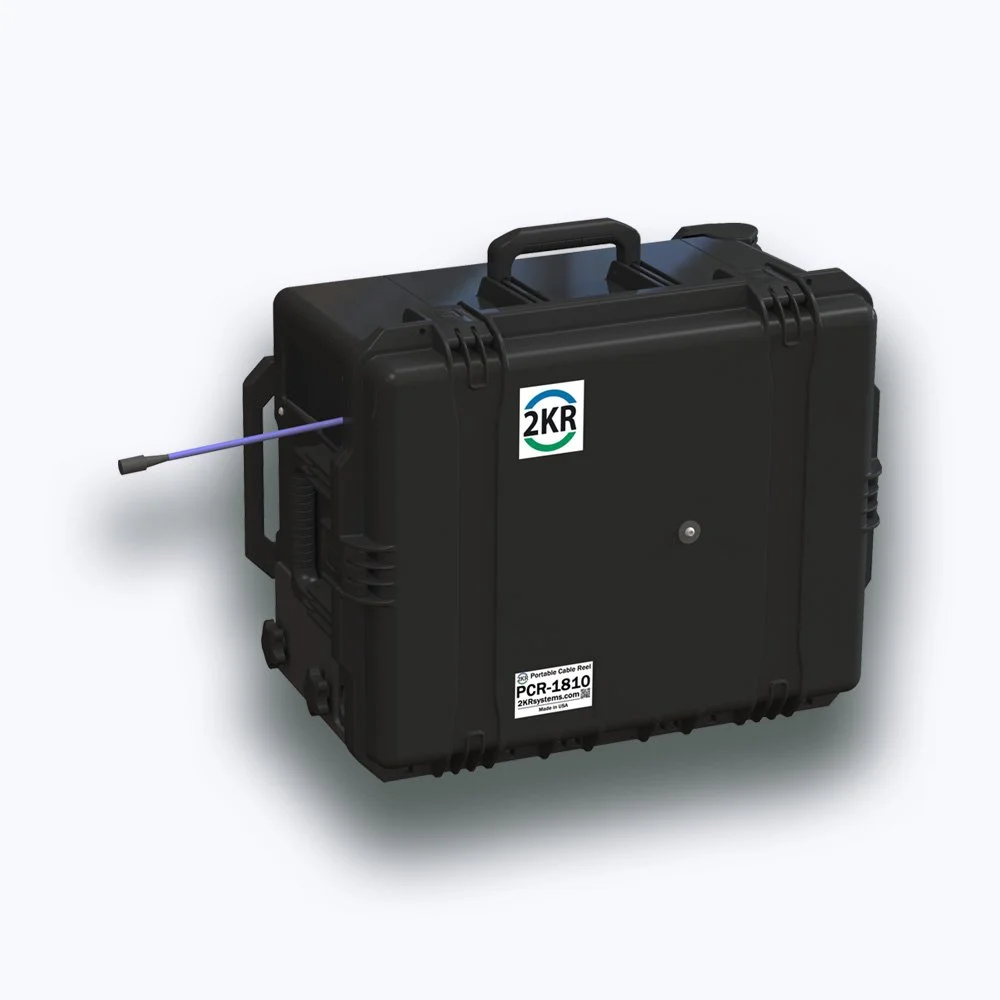

PCR-1810
$1,139.00P/N 110343 · Large
Our largest size storage reel holds your longer cables.
Is a Storage Reel Right for You?
If it's feasible to deploy (pull out) the working cable before connecting the stationary end of the cable reel, you don't need a rotary joint. A 10 Series reel saves money and ships sooner.
Need both ends connected with signal or power flowing while the drum rotates? Look at the 20 Series
10 Series Features
- Highly Portable; One Hand Lift for Rapid Deployment
- Variable Friction Brake Controls Drum Rotation
- Slide Down Feet with Captive Hardware Deploy in Seconds
- Slide-Out Handle and Travel Wheels for Easy Transport (PCR-1210, PCR-1810)
- All Weather Construction; Hose-Down Rinse Inside and Out. Drain holes across base.
- Additional Axle Support when Lid is Closed
- Interior Storage for "Deck Cables" and other items
- Can be supplied with customer selected cable and connectors
Compare 10 Series Specifications
| Specification | PCR-610 | PCR-1210 | PCR-1810 |
|---|---|---|---|
| Part number | 110398 | 110337 | 110343 |
| Case dimensions | 21.20 × 17.20 × 8.39 in (538 × 437 × 213 mm) | 24.56 × 19.60 × 11.53 in (624 × 498 × 293 mm) | 24.56 × 19.60 × 14.28 in (624 × 498 × 363 mm) |
| Weight (w/o cable) | 19 lbs (8.6 kg) | 31 lbs (14.1 kg) | 33 lbs (15.0 kg) |
| Drum diameter | 6.0 in (152 mm) | 6.0 in (152 mm) | 6.0 in (152 mm) |
| Flange diameter | 14.0 in (356 mm) | 16.3 in (414 mm) | 16.3 in (414 mm) |
| Drum length | 4.9 in (122 mm) | 7.2 in (183 mm) | 9.9 in (251 mm) |
| Capacity, 1/4 in cable | 607 ft | 1,341 ft | 1,863 ft |
| Capacity, 6 mm cable | 209 m | 452 m | 627 m |
| Ships | 5 business days* | 5 business days* | 5 business days* |
| Max cable diameter | 0.75 in (19 mm) | 0.75 in (19 mm) | 0.75 in (19 mm) |
*Ships in 5 business days from receipt of order, at current inventory.
