PCR-610 (110398)

$939.00

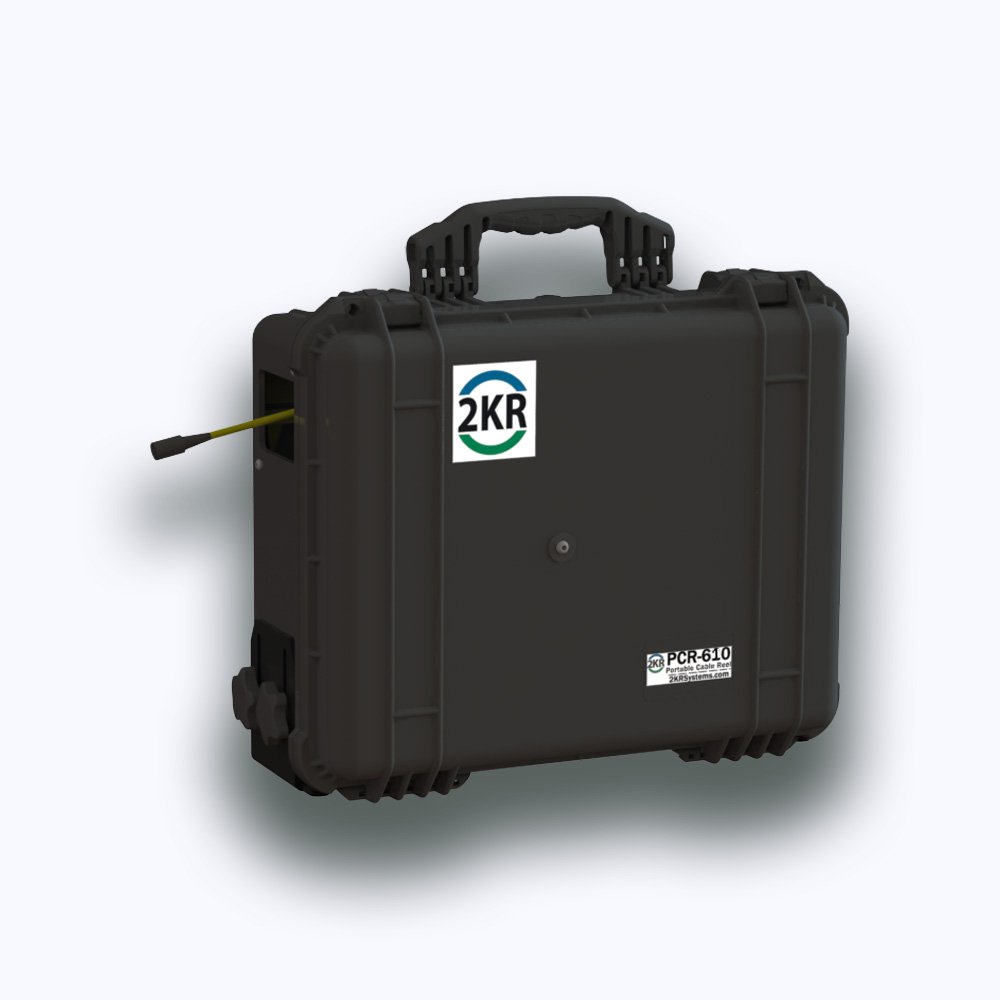

The smallest and lightest cable reel for storage.

The rugged and mobile PCR-610 Portable Cable Reel holds over 180 meters (600 ft) of 6 mm (0.24 in) diameter cable for connection to your field equipment. The PCR-610 is an economical cable reel supplied without a slip ring (rotary joint) letting the user install most any small diameter cable regardless of connector type. However the PCR-610 is upgradable - even after purchase to become the PCR-620 and include a slip ring and connectors.
Cable deployment and recovery is controlled by a drum-mounted revolving handle for easy cable control. A variable friction brake sets the drag preventing free-spooling. All materials are durable and corrosion resistant for long service life.

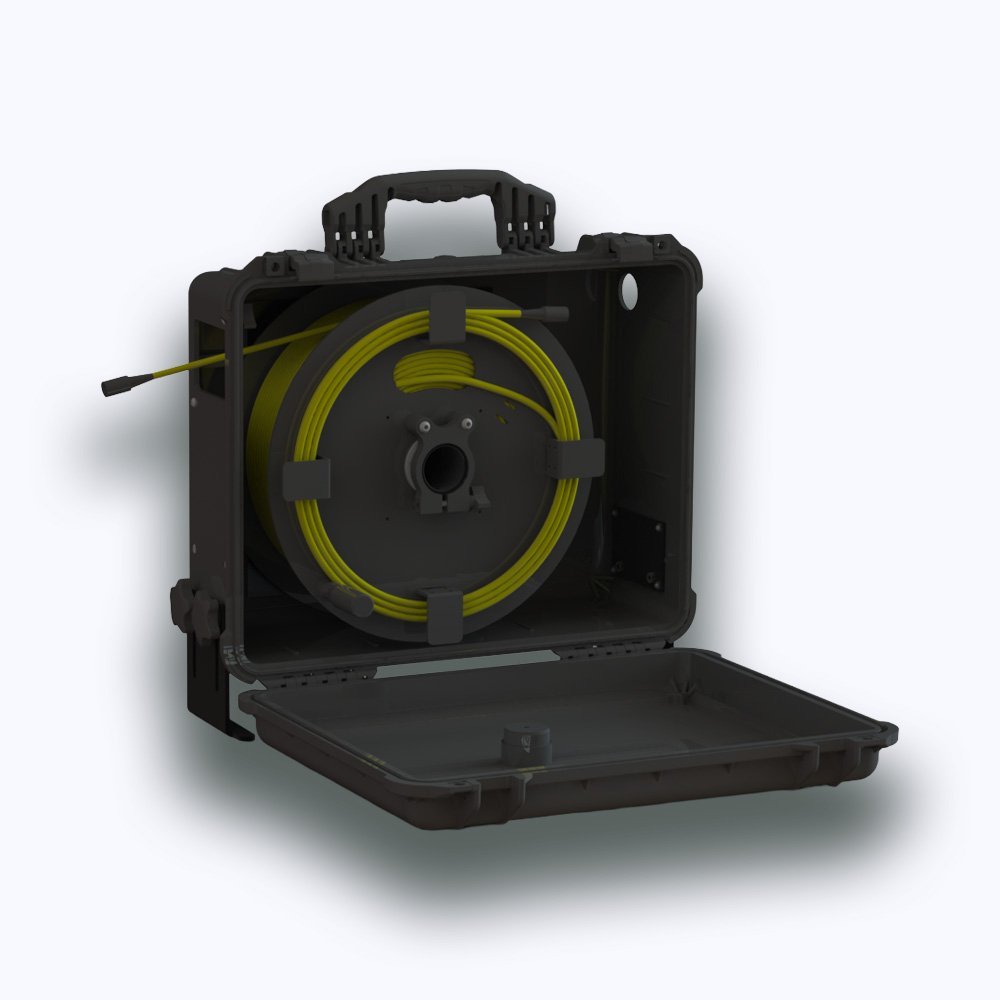

(Shown with customer-supplied cable)

The smallest and lightest cable reel for storage.

The rugged and mobile PCR-610 Portable Cable Reel holds over 180 meters (600 ft) of 6 mm (0.24 in) diameter cable for connection to your field equipment. The PCR-610 is an economical cable reel supplied without a slip ring (rotary joint) letting the user install most any small diameter cable regardless of connector type. However the PCR-610 is upgradable - even after purchase to become the PCR-620 and include a slip ring and connectors.
Cable deployment and recovery is controlled by a drum-mounted revolving handle for easy cable control. A variable friction brake sets the drag preventing free-spooling. All materials are durable and corrosion resistant for long service life.

(Shown with customer-supplied cable)

Made in the USABuilt by 2KR Systems in NH

1-Year WarrantyView warranty details

Ships in 5 Business DaysFrom receipt of order, at current inventory

Continental US shippingInternational orders: contact us

180 m600 ft of 6 mm cable

20 lbs9.1 kg nominal (w/o cable)

19 mmMax cable diameter

Upgradableto a PCR-620 rotary joint reel

Specifications

Case Dimensions	21.20 in (538 mm) x 17.20 in (437 mm) x 8.39 in (213 mm)
Weight	20 lbs (9.1 kg) nominal (w/o cable)
Drum Diameter	6.0 in (152 mm)
Flange Diameter	14.0 in (356 mm)
Drum Length	4.9 in (122 mm)
Capacity	Over 180 m (600 ft) of 6 mm (0.24 in) cable

Cable Capacity

Drag the slider to your cable diameter to see how much cable fits. The PCR-610 is highlighted; the larger reels are shown for comparison.

Cable diameter

Max cable length

Vertical axis is logarithmic. Capacities include the 80% real-world winding factor. Max cable diameter 0.75 in (19 mm).

Features

Highly Portable; One Hand Lift for Rapid Deployment
Variable Friction Brake Controls Drum Rotation
Slide Down Feet with Captive Hardware Deploy in Seconds
All Weather Construction; Hose-Down Rinse Inside and Out. Drain holes across base.
Additional Axle Support when Lid is Closed
Interior Storage for "Deck Cables" and other items
Can be supplied with customer selected cable and connectors
Can be upgraded to a Slip Ring and Connectorized reel

Applications

Television & Video Production Oceanographic, SSS, ROVs, UAVs Communications Equipment UUV / AUV Support Cables Mobile Satellite Antennas Emergency Services Remote Cameras and Sensors Mobile Networks

Downloads

PDF

PCR-610 Product Data Sheet250235 Rev 00 · PDF · 2 pages · Specs, inside view, and capacity chart

Download PDF

Rotary joint option

Need data while the drum turns?

The PCR-620 is the same reel with a rotary joint, so your equipment stays connected while you deploy. Choose 100 Mbps Ethernet, 1 Gbps Ethernet, or single mode fiber optic.

View PCR-620

Need a different connector or cable?

Ask about custom connectors and cable configurations for your application.
