PCR-1210 (110337)

$1,079.00

Our most popular and mid-size reel for storage.

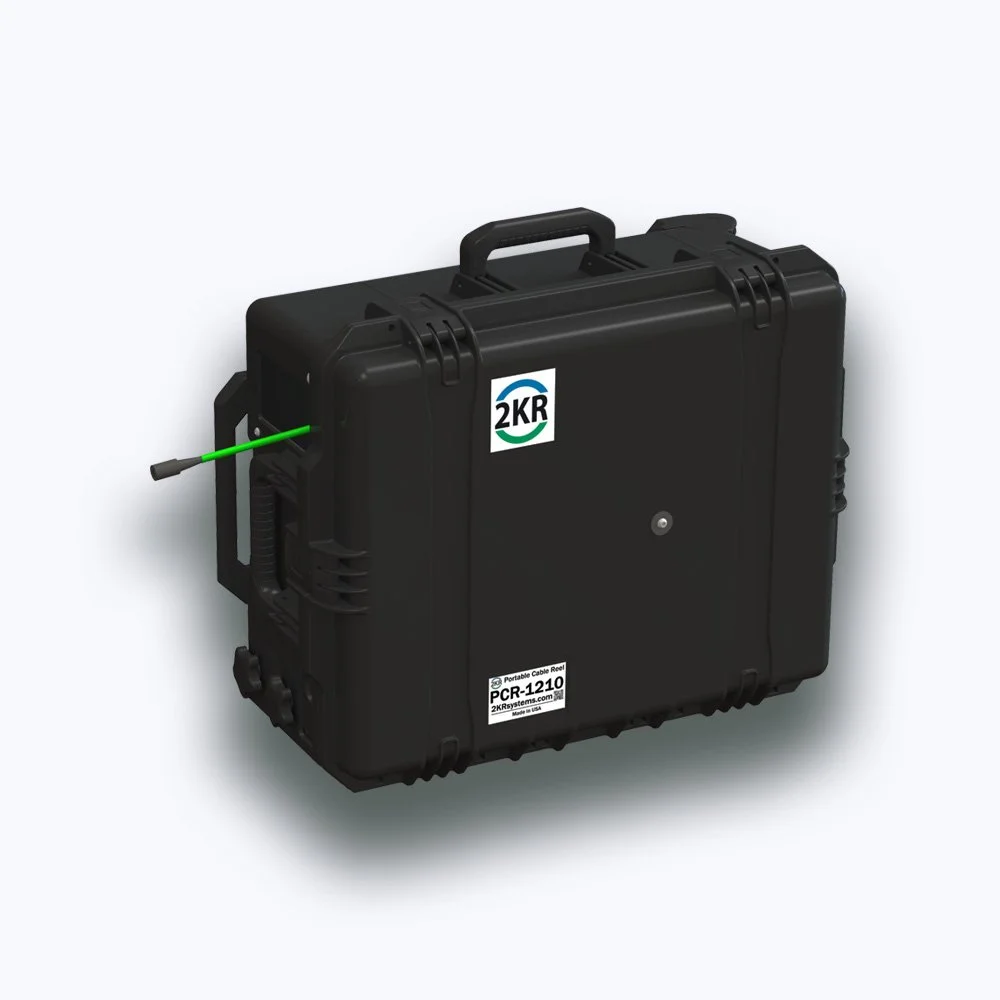

The PCR-1210 Portable Cable Reel holds over 220 meters (720 ft) of 8 mm (0.32 in) diameter cable for connection to your field equipment. The PCR-1210 is an cost effective cable reel supplied without a slip ring (rotary joint) letting the user install most any small to mid diameter cable regardless of connector type. However the PCR-1210 is upgradable - even after purchase to become the PCR-1220 and include a slip ring and connectors.
Cable deployment and recovery is controlled by a drum-mounted revolving handle for easy cable control. A variable friction brake sets the drag preventing free-spooling. All materials are durable and corrosion resistant for long service life.

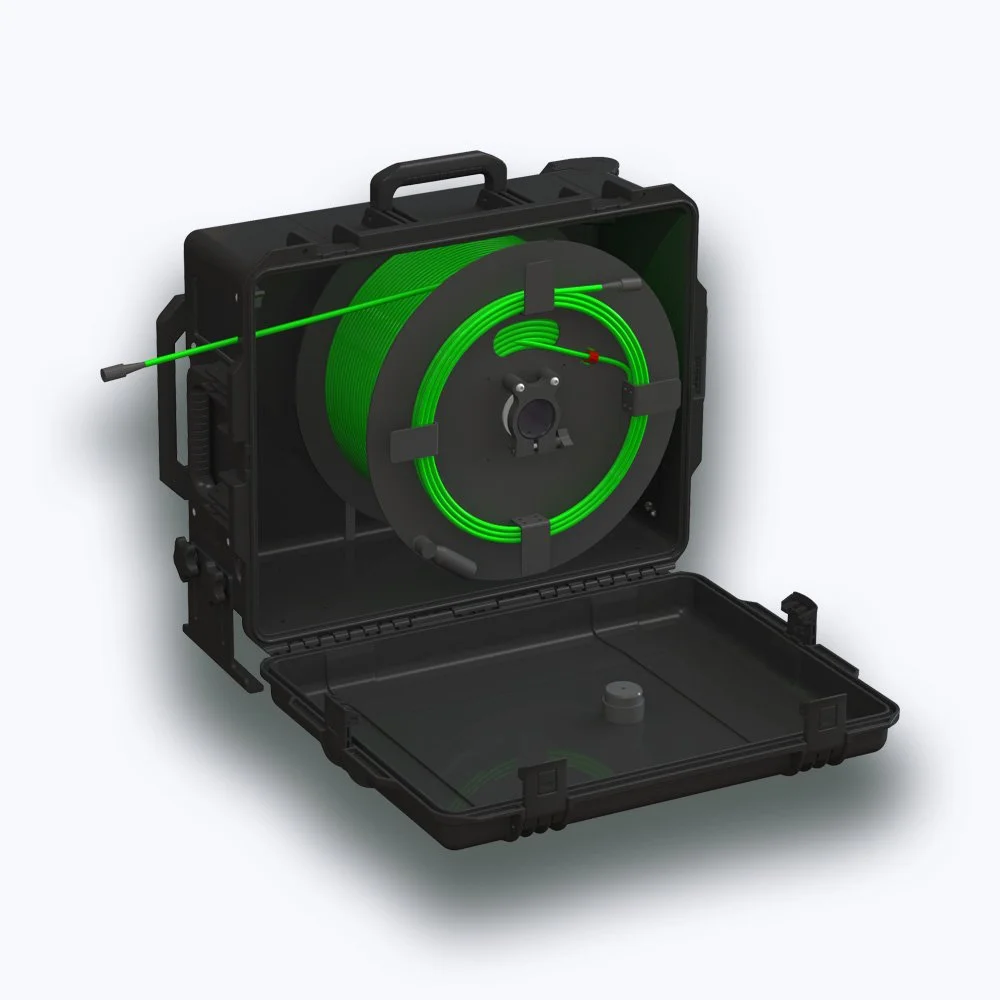

(Shown with customer-supplied cable)

Our most popular and mid-size reel for storage.

The PCR-1210 Portable Cable Reel holds over 220 meters (720 ft) of 8 mm (0.32 in) diameter cable for connection to your field equipment. The PCR-1210 is an cost effective cable reel supplied without a slip ring (rotary joint) letting the user install most any small to mid diameter cable regardless of connector type. However the PCR-1210 is upgradable - even after purchase to become the PCR-1220 and include a slip ring and connectors.
Cable deployment and recovery is controlled by a drum-mounted revolving handle for easy cable control. A variable friction brake sets the drag preventing free-spooling. All materials are durable and corrosion resistant for long service life.

(Shown with customer-supplied cable)

Made in the USABuilt by 2KR Systems in NH

1-Year WarrantyView warranty details

Ships in 5 Business DaysFrom receipt of order, at current inventory

Continental US shippingInternational orders: contact us

210 m720 ft of 8 mm cable

30 lbs13.6 kg nominal (w/o cable)

19 mmMax cable diameter

Upgradableto a PCR-1220 rotary joint reel

Specifications

Case Dimensions	24.56 in (624 mm) x 19.60 in (498 mm) x 11.53 in (293 mm)
Weight	30 lbs (13.6 kg) nominal (w/o cable)
Drum Diameter	6.0 in (152 mm)
Flange Diameter	16.3 in (414 mm)
Drum Length	7.2 in (183 mm)
Capacity	Over 210 m (720 ft) of 8 mm (0.32 in) cable

Cable Capacity

Drag the slider to your cable diameter to see how much cable fits. The PCR-1210 is highlighted; the other sizes are shown for comparison.

Cable diameter

Max cable length

Vertical axis is logarithmic. Capacities include the 80% real-world winding factor. Max cable diameter 0.75 in (19 mm).

Features

Highly Portable; One Hand Lift for Rapid Deployment
Variable Friction Brake Controls Drum Rotation
Slide Down Feet with Captive Hardware Deploy in Seconds
Slide-Out Handle and Travel Wheels for Easy Transport
All Weather Construction; Hose-Down Rinse Inside and Out. Drain holes across base.
Additional Axle Support when Lid is Closed
Interior Storage for "Deck Cables" and other items
Can be supplied with customer selected cable and connectors
Can be upgraded to a Slip Ring and Connectorized reel

Applications

Communications Equipment Television & Video Production Mobile Satellite Antennas Emergency Services Remote Cameras and Sensors Mobile Networks Oceanographic, ROV & AUV Support Cables Side Scan Sonar and Sub Bottom Profilers

Downloads

PDF

PCR-1210 Product Data Sheet250227 Rev 00 · PDF · 2 pages · Specs, inside view, and capacity chart

Download PDF

Rotary joint option

Need data while the drum turns?

The PCR-1220 is the same reel with a rotary joint, so your equipment stays connected while you deploy. Choose 100 Mbps Ethernet, 1 Gbps Ethernet, or single mode fiber optic.

View PCR-1220

Need a different connector or cable?

Ask about custom connectors and cable configurations for your application.

Contact Us
